The optimal solution for protection of heat exchangers and the internal surface of the heating system of a modular boiler room.
Filter set 2_MST_BB10 includes:
Stage 1 of the pre-filter type BB10 with a cartridge of foamed polypropylene filtration rating of 5 microns:
removal of mechanical impurities from water (sand, silt, rust, etc.). Protects and prolongs the life of the main equipment for water treatment.
Filter element: polypropylene cartridge size 10 ″.

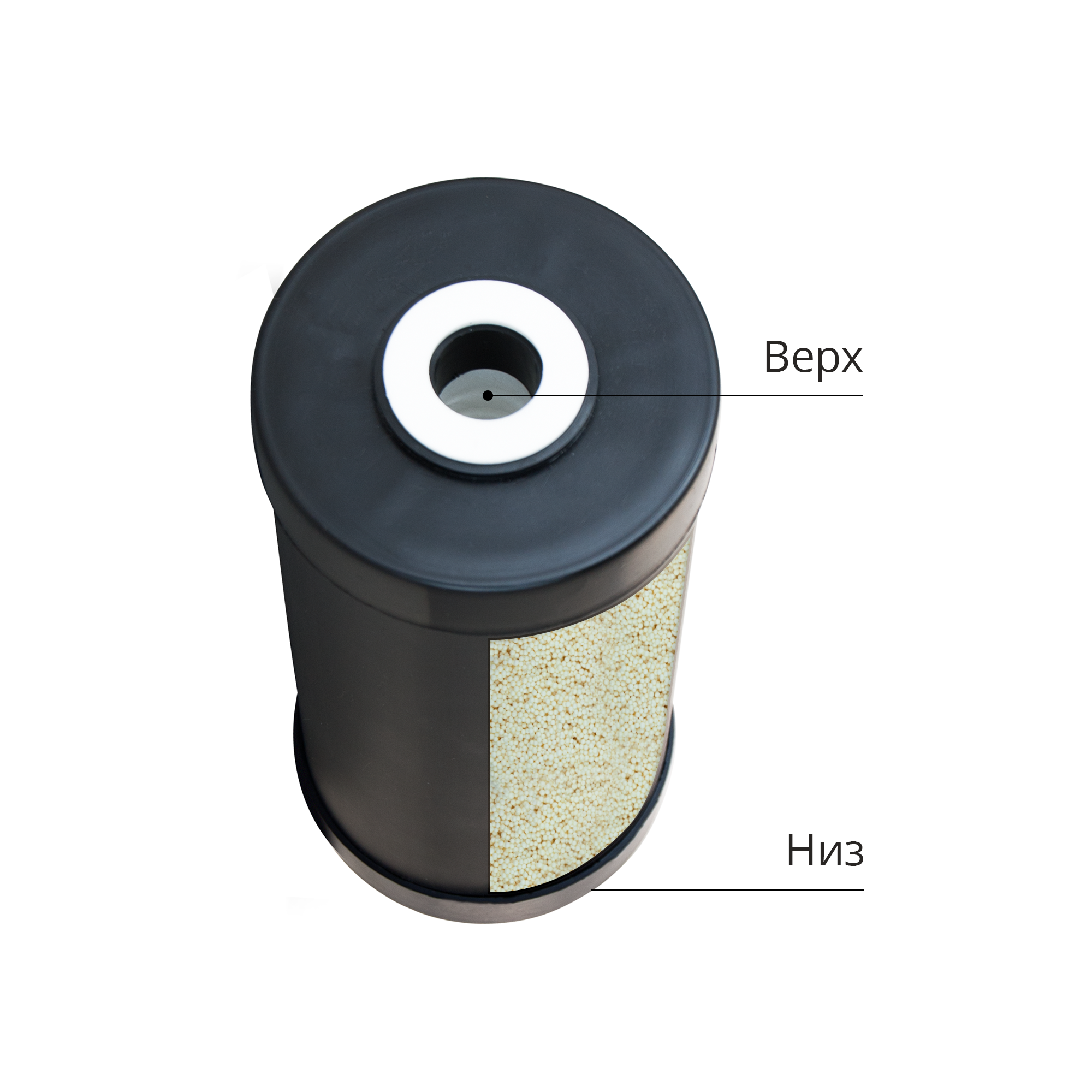

Stage 2 anti-scale filter "SVOD-AS":
the active substance “SVOD-AS” is an anion exchange resin treated with chemically active components according to a special technology. Water passing through the filter acquires new properties that do not allow hardness salts to fall out on the heat exchange surface and stop valves.

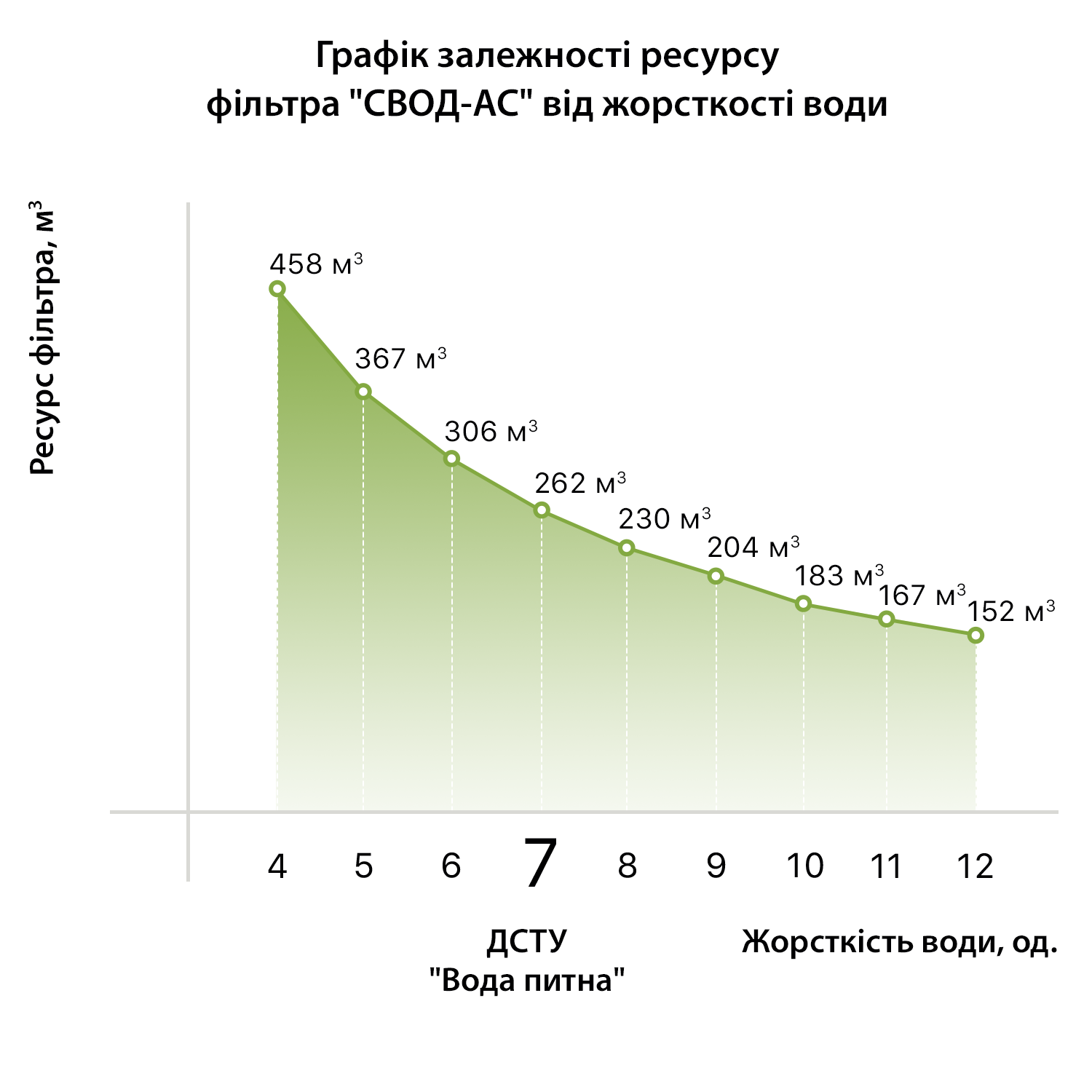

Cartridge life: 262,000 l (262 m3), provided that the water complies with GOST 2874-82 "Drinking water")
Water temperature: +5 ... +40 ° С
Operating temperature of heated water: +5 ... +105 ° С.

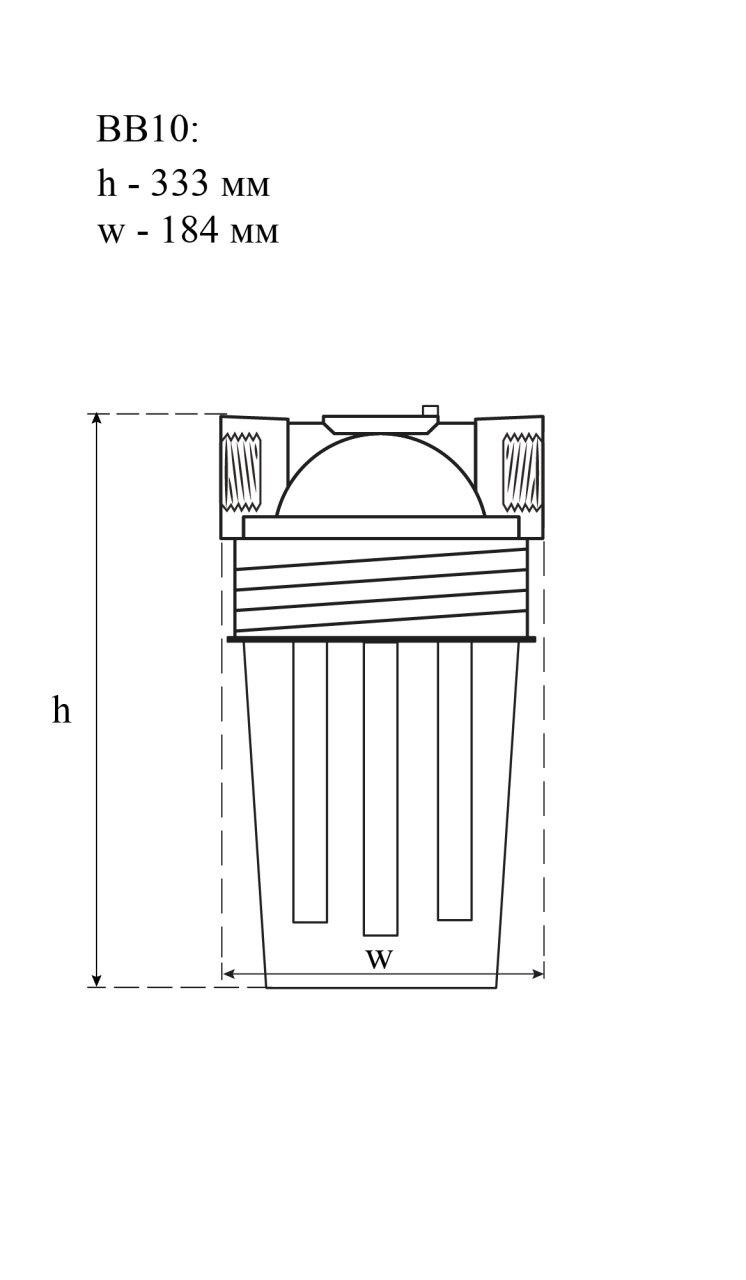

Height: 333 mm
Diameter 184 mm
Thread Diameter: 1 "
Maximum water pressure - up to 0.6 MPa (6 atm.)
Filter capacity: 3 - 5 m3 / hour
Filter mechanical water purification - 1 pc
Anti-scale filter "SVOD-AS" - 1 pc
Bulb Connector - 1 pc
Passport and operating instructions - 1 pc
