The set of filters "SVOD" HVP 2_MST_BB20
ресурс: 525 м3
price: 9,100 UAH
The optimal solution for protection of heat exchangers and the internal surface of the heating system of a modular boiler room.
Filter set 2_MST_BB20 includes:
Stage 1 of the coarse filter type BB20 with a cartridge of foamed polypropylene 5 micron filtration rating:
removal of mechanical impurities from water (sand, silt, rust, etc.). Protects and prolongs the life of the main equipment for water treatment.
Filter element: polypropylene cartridge size 20 ″.

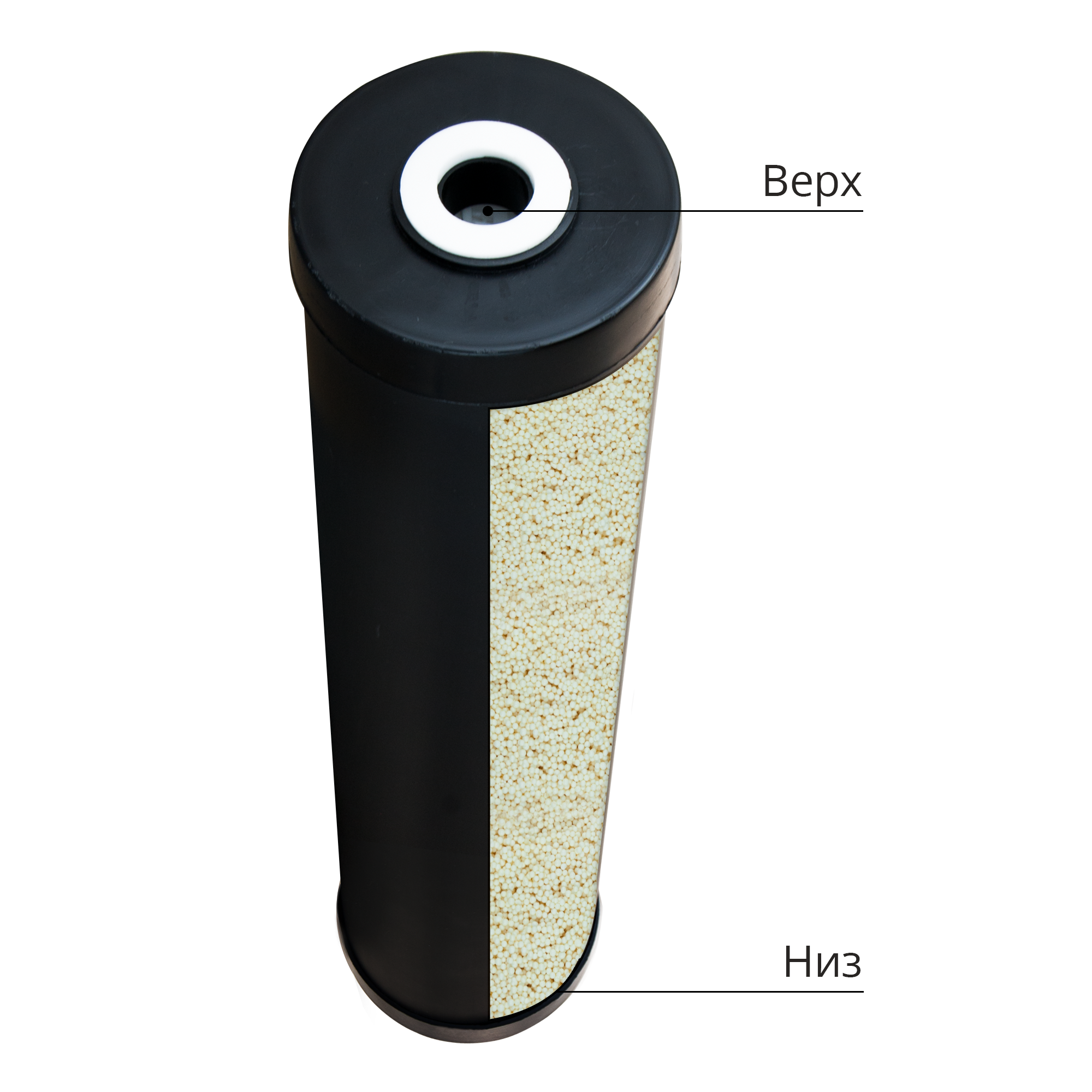

Stage 2 anti-scale filter "SVOD-AS":
the active substance “SVOD-AS” is an anion exchange resin treated with chemically active components according to a special technology. Water passing through the filter acquires new properties that do not allow hardness salts to fall out on the heat exchange surface and stop valves.
the active substance “SVOD-AS” is an anion exchange resin treated with chemically active components according to a special technology. Water passing through the filter acquires new properties that do not allow hardness salts to fall out on the heat exchange surface and stop valves.
Specifications:

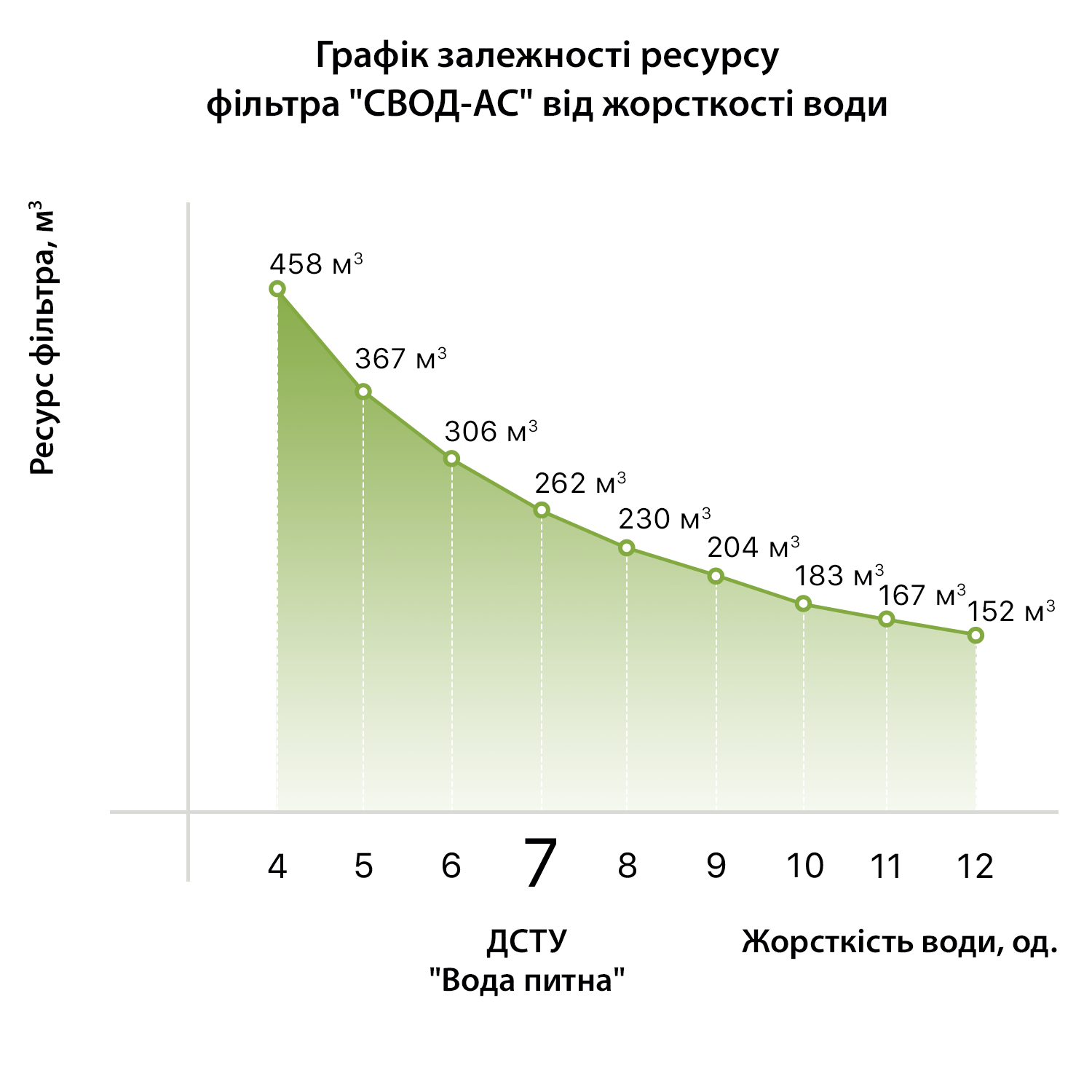

Filter resource - 525 000 l (525 m3), provided that the water complies with GOST "Drinking Water"
Water temperature: +5 ... +40 ° С
Operating temperature of heated water: +5 ... +105 ° С

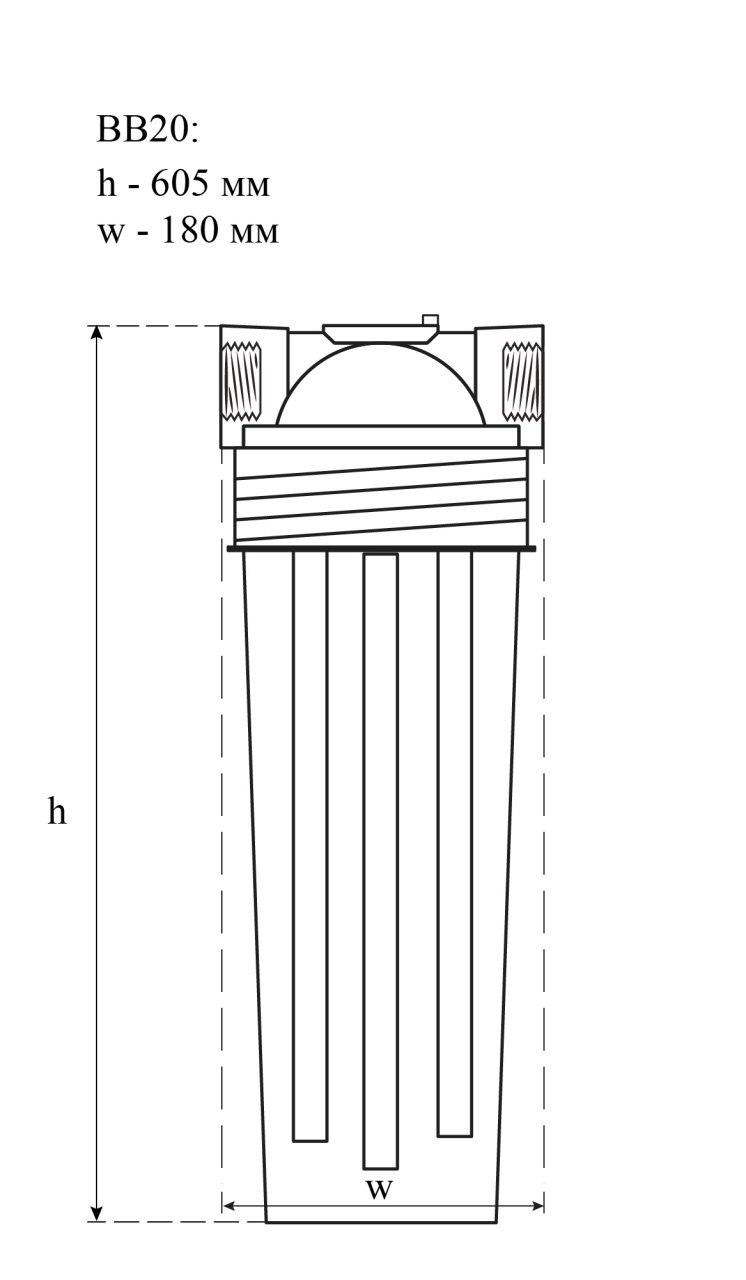

Height: 605 mm
Diameter: 180 mm
Thread Diameter: 1 "
Throughput: 3 - 5 m3 / hour
Maximum water pressure - up to 0.6 MPa (6 atm.)
Equipment:
Filter mechanical water purification - 1 pc
Anti-scale filter "SVOD-AS" - 1 pc
Bulb Connector - 1 pc
Passport and operating instructions - 1 pc
![]() |
![]() |
![]() |
![]() |
